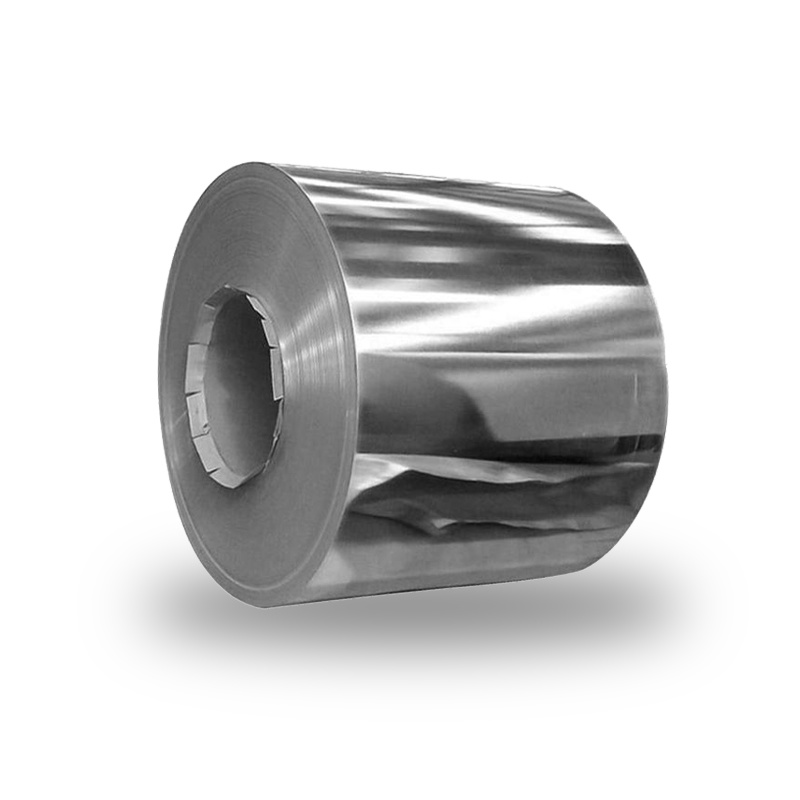

Cold Rolled Ordinary Oriented Silicon Steel

Oriented silicon steel, also known as cold-rolled transformer steel, is an important ferrosilicon alloy used in transformer (core) manufacturing industry. The most widely used oriented silicon steel is supplied in the form of a coil, and its surface is coated with an insulating layer to generate tensile stress in the base steel strip, thus further reducing the iron loss value. The cold-rolled strip has a smooth surface, good punching performance and high core filling factor.

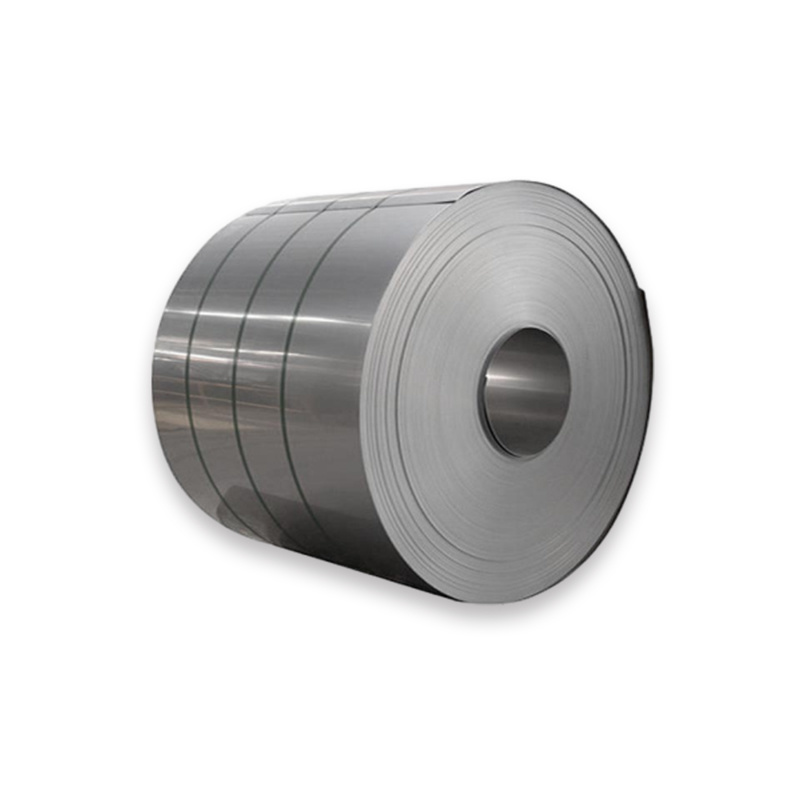

Cold Rolled High Magnetic Induction Oriented Silicon Steel

High magnetic induction and low iron loss cold rolled oriented silicon steel sheet is an urgent product in power industry. The higher the magnetism of the silicon steel sheet, the electrical appliances manufactured are: less power loss, small size, light weight, long service life, and less cooling oil for the manufactured transformer. In particular, it can solve the problem that large electrical appliances such as transformers larger than 360000 KVA use lower magnetism. Difficulties of oriented silicon steel sheet manufacturing and transportation cannot pass through railway tunnels and highway bridges.

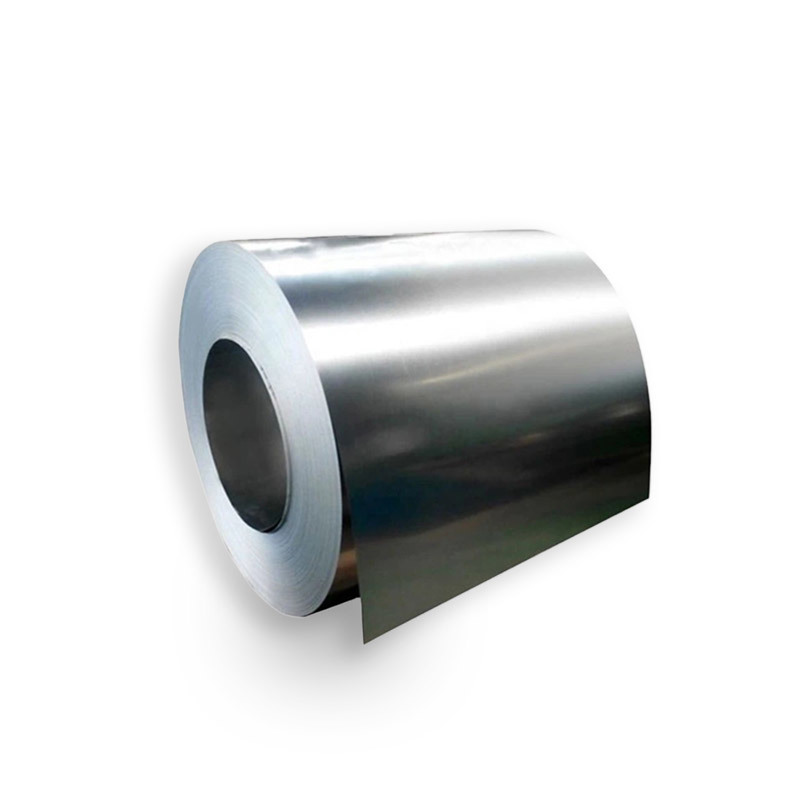

CGO Grain Oriented Electrical Steel M3/M4/M5/M6

We produce cold rolled grain oriented plates (CRGO), also known as transformer plates. They are made of 3% silicon steel. There are four grades of CRGO sheets: 0.23mm (M3), 0.27mm (M4), 0.30mm (M5), and 0.35mm (M6).

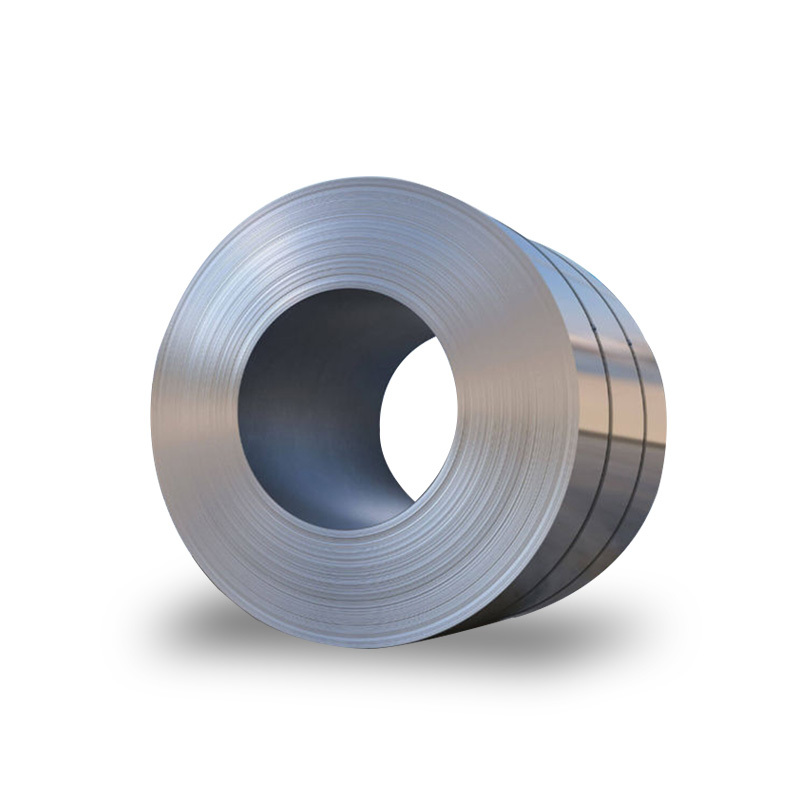

CGO Conventional Electrical Steel M3/M4/M5/M6

We produce cold rolled grain oriented sheet (CRGO), also known as transformer sheet. They are made of 3% silicon steel. There are four grades of CRGO sheet: 0.23mm (M3), 0.27mm (M4), 0.30mm (M5), 0.35mm (M6).

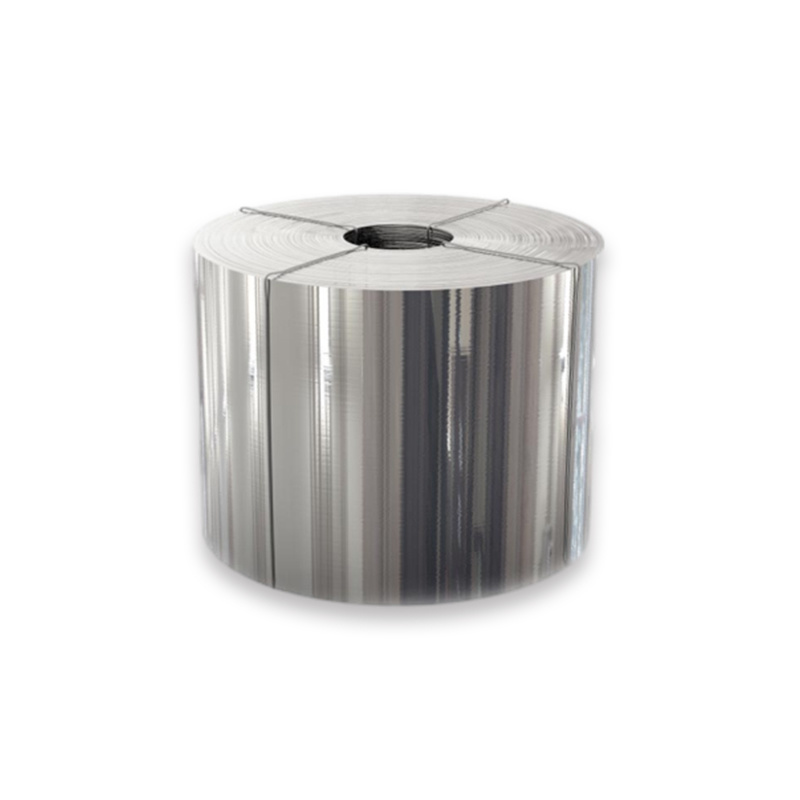

23Q110/27Q120/30Q120/35Q135 CRGO Conventional

Electrical steel, usually referring to cold rolled electrical steel, can be divided intotwo major categories including grain oriented electrical steel and non-orientedelectrical steel. Grain oriented electrical steel, with its easy magnetizationdirection parallel to the rolling direction, has excellent magnetic properties in thisdirection including low core loss, high permeability and low magnetostriction andis widely used in the transformer industry. Further it can obtain lower core lossby domain refinement treatment. Meanwhile non-oriented electrical steel.featured by random distribution of grain orientation and magnetic isotropy, iswidely applicable to the motor industry.

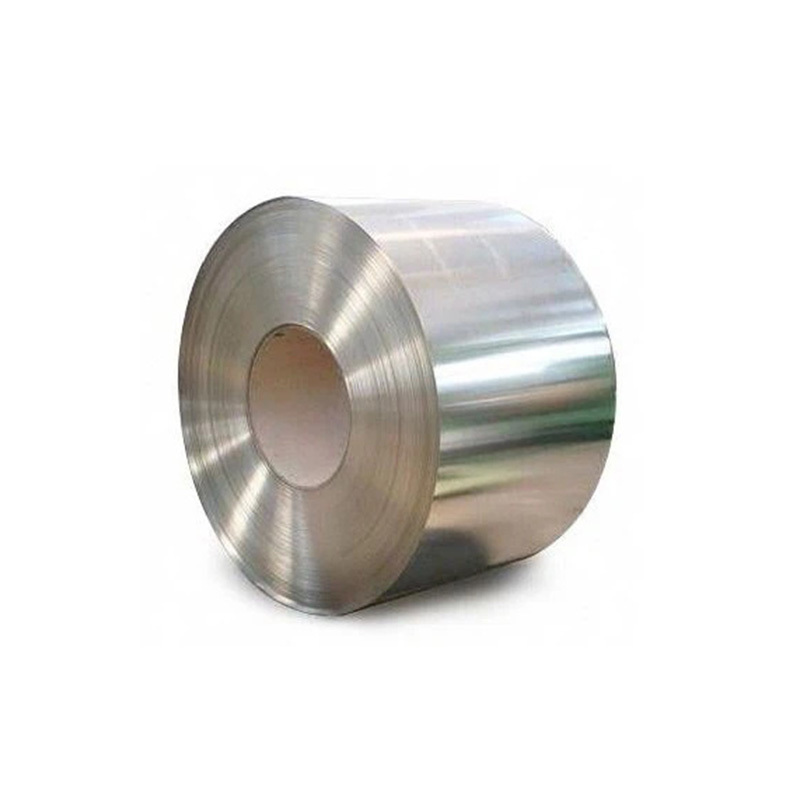

18QG085/20QG085/23QG095/27QG100/30QG120 CRGO High Induction

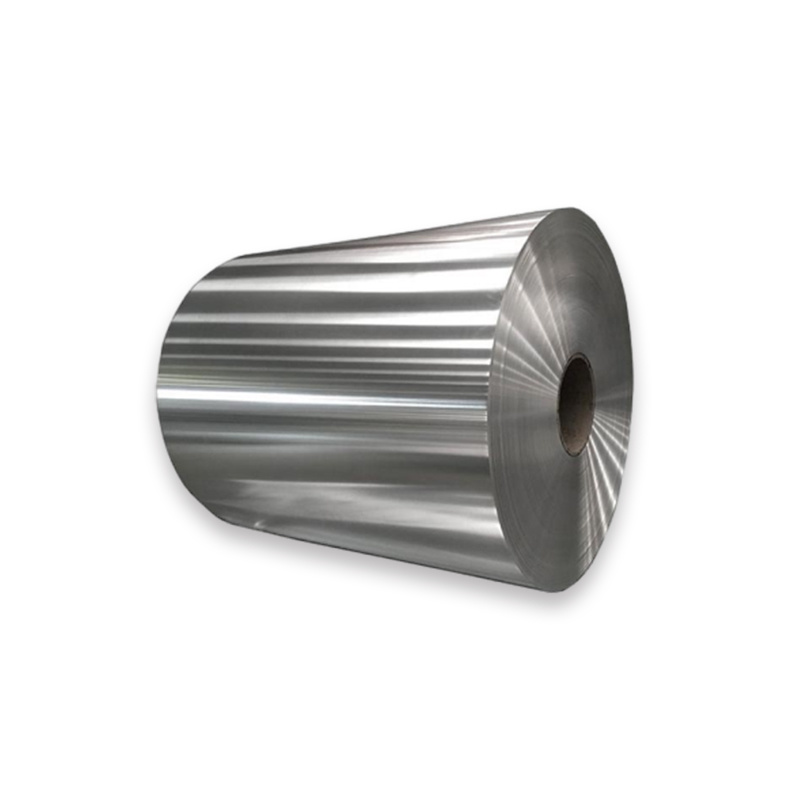

18RK085/23RK075/27RK090/30RK105 CRGO Domamin Refined High Induction

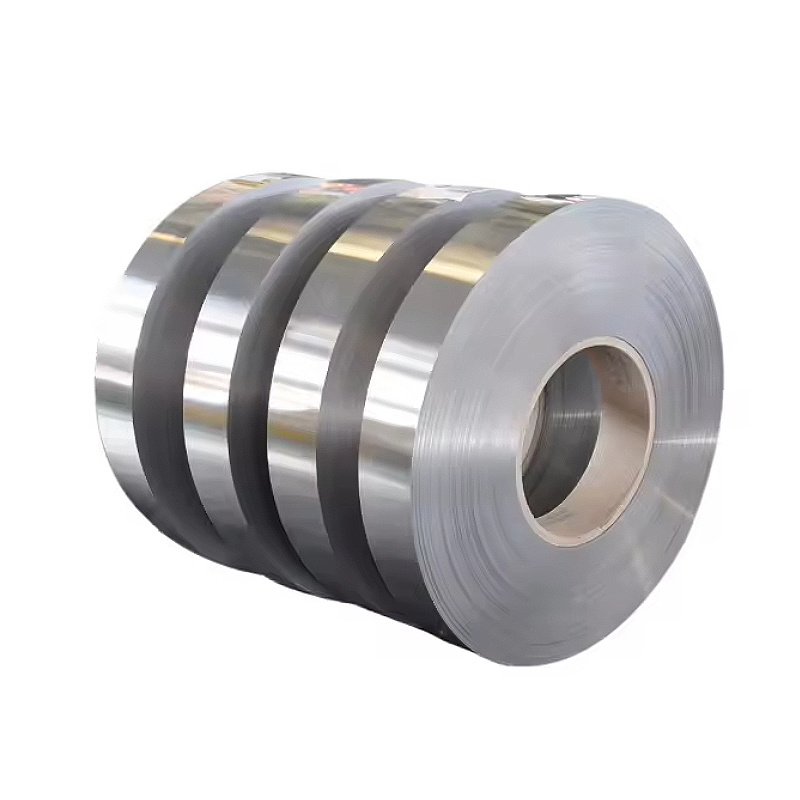

Hot Rolled High Silicon Steel (Transformer Steel)

High silicon silicon content of 2.8~4.8%, it is good magnetic, but more brittle, mainly used in the manufacture of transformer core, commonly known as transformer silicon steel sheet, commonly used in high silicon manufacturing large motor.

Cold Rolled Grain Oriented Silicon Steel Strip

Grain-oriented silicon steel strip, also known as cold-rolled silicon steel strip for telecommunications, is used in the manufacture of various power transformers, pulse transformers, magnetic amplifiers, converters and other cores with a working frequency of 400Hz or more.

Cold Rolled Oriented Silicon Steel Strip

Non oriented silicon steel is used in rotating equipment such as motors, which are divided into iron cores and rotors. In order to be easily magnetized during the rotation process, electrical energy is converted into mechanical energy. Therefore, it is required that every angle during the rotation process be easily magnetized, so uniform grain orientation distribution is required in non oriented silicon steel.
